OSB Thickness Range: 8 mm to 18 mm by Application

Strand board is not one product with one thickness; it is a family of six thicknesses and three grades that map onto different jobs. Dongstar publishes 8, 9 and 11 mm at the thin end, 12, 15 plus 18 mm above as standard them panels in the standard 1220 × 2440 mm format, available in customised sizes, with a grade structure that separates dry interior work from load-bearing use in humid conditions, as published by the manufacturer on its own pages — read 29 Sept 2026. as standard

Thickness follows the job, not the price list

The six published thicknesses are not arbitrary steps. Each one corresponds to how the panel is loaded. At 8 and 9 mm the board is thin and flexible, which suits sheathing, packaging work and linings where stiffness is not the point. At 11 and 12 mm it starts to serve as a general substrate for furniture and interior fitting. At 15 and 18 mm it becomes a structural deck or a floor panel that has to carry a distributed load without deflecting beyond what the build allows.

Choosing thickness therefore starts with a load statement rather than a budget. A flooring substrate spanning joists at a fixed spacing has a deflection limit, and the panel thickness that satisfies it is set by that limit, not by what the sheet costs. Once the thickness is fixed, the grade and the resin follow: a floor panel in a humid space is a different specification from a pallet deck in a dry warehouse, even when both are cut from the same 15 mm line.

What the three grades actually separate

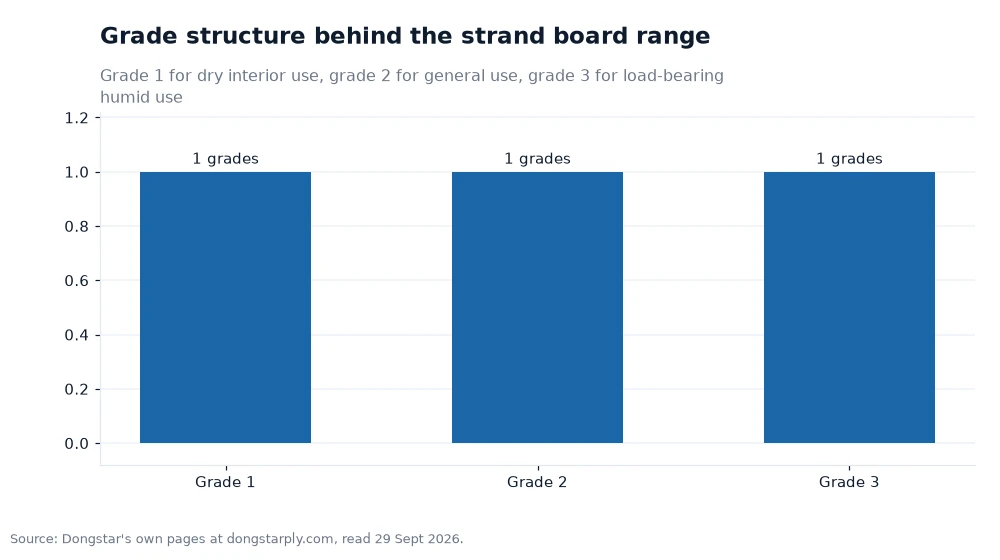

The published grade definitions are unusually clear, and they are worth quoting rather than paraphrasing loosely. Grade OSB 1 is described as the basic grade for dry interior conditions, aimed at non-structural use such as packaging and pallets. Grade OSB 2 is described as general purpose, again for dry conditions, covering furniture, DIY and general construction with medium load. OSB 3 is the grade the manufacturer sets aside for structural work in humid conditions, covering flooring, roof decking, wall panels and structural components.

The line between grade 2 and OSB 3 is the one buyers cross most often. Both are structural enough for furniture and general building work. What separates them is humidity and load-bearing duty. A wall panel or a floor inside a bathroom shell, a roof deck exposed to weather during construction, an agricultural building — these sit on the OSB 3 side of the line. A wardrobe carcass or a dry interior partition sits on the grade 2 side. Buying grade 2 for an OSB 3 job is the mistake that produces edge swelling in the first wet week.

Resins: from MR to PMDI and phenolic

The published glue list is long: MR and the E2, as a rule, E1, E0 emission classes, plus ENF, PMDI, WBP, melamine plus phenolic. The as standard manufacturer explains each in one line. MR is described as the cost-effective choice for interior use. E2, E1 and E0 measure formaldehyde release, ranked by the manufacturer with E2 highest of the three and E1 and E0 below it. Environment friendly is the description given to the ENF class. For panels that need both properties at once, PMDI is described as combining strength with moisture resistance. WBP and phenolic are described as water resistant and suitable for outdoor and humid environments. Melamine is described as moisture resistant with a good surface.

Read together, those entries divide into three groups: release classes, which are about what the panel emits in service; performance resins, which are about what the panel survives in service; and combinations, such as PMDI, that address both strength and moisture at once. A buyer specifying a panel for an interior fit-out usually needs the release class named. A buyer specifying for a humid or outdoor location needs the resin named. Asking for one when the other is required is the root of most specification mismatches on this product.

Strands, orientation and what the board is not

Strand board is built from wood strands laid in layers and bonded with resin under heat and pressure. The orientation of the strands between layers is what gives the panel its character — it is why the board resists bending in both directions while being easier to work with than many solid alternatives, and why it holds a screw along the face better than a particle core does. That structure also means the panel has a face and an edge that behave differently, and cut edges should be treated accordingly.

Species matter to the finished board. The published strand sources are poplar, pine and eucalyptus, all drawn from responsibly managed forests. Poplar brings lightness and predictable machining, pine contributes stiffness and a stable resin bond, and eucalyptus adds density and moisture tolerance. A buyer who needs consistency across several deliveries should ask which species mix was used, because the panel weight per sheet will vary across the three even at a constant thickness. Panels are produced by Dongstar Group at its base in Linyi city, China.

Sizes, customisation and the format question

The standard published size is 1220 × 2440 mm, with customised sizes available. That is the format most cutting plans assume, and it is the one that fills containers efficiently when panels are shipped flat and palletised. A customised size is worth asking about when a fixed module is being repeated hundreds of times, because a sheet cut to the module reduces both labour and offcut. It is rarely worth asking about for one-off work, where the standard format and a good saw are cheaper than a special production run.

Format also interacts with grade. A structural floor panel is normally supplied in the larger format where spans and joist centres are described in feet, while smaller modules are used for wall and furniture work. Because the grade and the size are published as separate fields, the order should name both: grade 3 strand board at 18 mm in 1220 × 2440 mm is a complete specification, whereas "18 mm OSB" leaves the two most consequential fields open. On an Oriented Strand Board OSB order, naming the grade and the resin is what makes the line mean something once the panels reach the shop floor.

Worked example: checking a floor deck specification

A fit-out needs 640 m² of flooring substrate on a humid ground floor. In the 1220 × 2440 mm format, each panel works out at 1.22 × 2.44 = 2.98 m² (example), so the job needs 640 ÷ 2.98 = 215 panels, rounded up to 216 (example). Allow a 7% cutting loss on a rectangular layout and the purchase becomes 216 × 1.07 = 231 panels (example).

Now test the thickness assumption. If the specification calls for an 18 mm structural grade because the deck spans a humid space, the purchase is 231 panels at 18 mm. If the same deck were inside a dry, protected environment, a 15 mm general-purpose panel might satisfy the structural requirement, and 231 panels at the lower thickness would weigh less per lift. The saving is not in the sheet price alone — thinner panels mean more sheet area per tonne of freight and easier handling on site. What must not be traded away is the grade: a humid ground floor with load-bearing duty belongs on grade 3 in the manufacturer's own definitions, and no thickness reduction changes that.

Frequently asked questions

Can grade 2 be used in a bathroom or a humid room?

The manufacturer defines grade 3 as the structural grade for humid conditions and load-bearing use, and describes grades 1 and 2 as dry-condition grades. Panels in a wet or humid space therefore sit on the grade 3 side of the published list.

What does PMDI bring to a panel that MR does not?

MR is described as the cost-effective option for interior use. PMDI is described as combining strength with moisture resistance, so it is chosen where the panel has to keep both properties rather than where cost is the leading constraint.

Which species mix should be expected in a delivery?

Poplar, pine and eucalyptus are the three strand species published, all from responsibly managed forests. The mix affects panel weight and density, so it is worth confirming for repeat orders where consistency matters.

Matching thickness to the job

Buyers who want to see where strand board sits in the wider catalogue can start at the companion panel page, which covers the chipboard alternative that shares much of the same glue list, and then read the company background to understand how the group organises production before placing a first order. Thickness decisions are easier once the grade and the resin are settled.

Thickness steps, grade definitions, glue classes and strand species listed in the table above are published on the factory's own website, consulted on 29 Sept 2026, as applied to this summary^[1].
